AGM AUTROY AUTJS-6000J

Automatic J Stitch Machine

TECHNICAL SPECIFICATIONS

AUTJS-6000J is an automatic programmable sewing machine for fly.
Automatic programmable sewing machine for fly, single needle, lockstitch, with automatic loader and stacker.
The machine head is AGM AUTROY sewing head single needle lockstitch.
Largest sewing area for fly length up to 270x300 mm (x-y).
Programming system to perform different type of stitching, bartacks and
embroidery.
Possibility of using the machine for both men’s and women’s garments (left and right) simply by moving the stacker.
Cheapest moulds worldwide.
Sewing patterns supplied by AGM AUTROY through email in maximum one working day.

Touch screen for easy and fast programming.
The automatic loader and the suction system make the garment positioning very easy and accurate with both buttons and zip fly and also allow another garment to be placed on the machine while it is still stitching.
The machine, easy to be used also by nonexpert operators, ensures high production and quality.
The programmable sewing area allows to use the machine for decorative stitching, pocket embroidery, label setting and so on, by using the respective proper devices.
Possiblity to upload the program directly on the machine’s control box thanks to the USB flash memory device.
Automatic stacker.

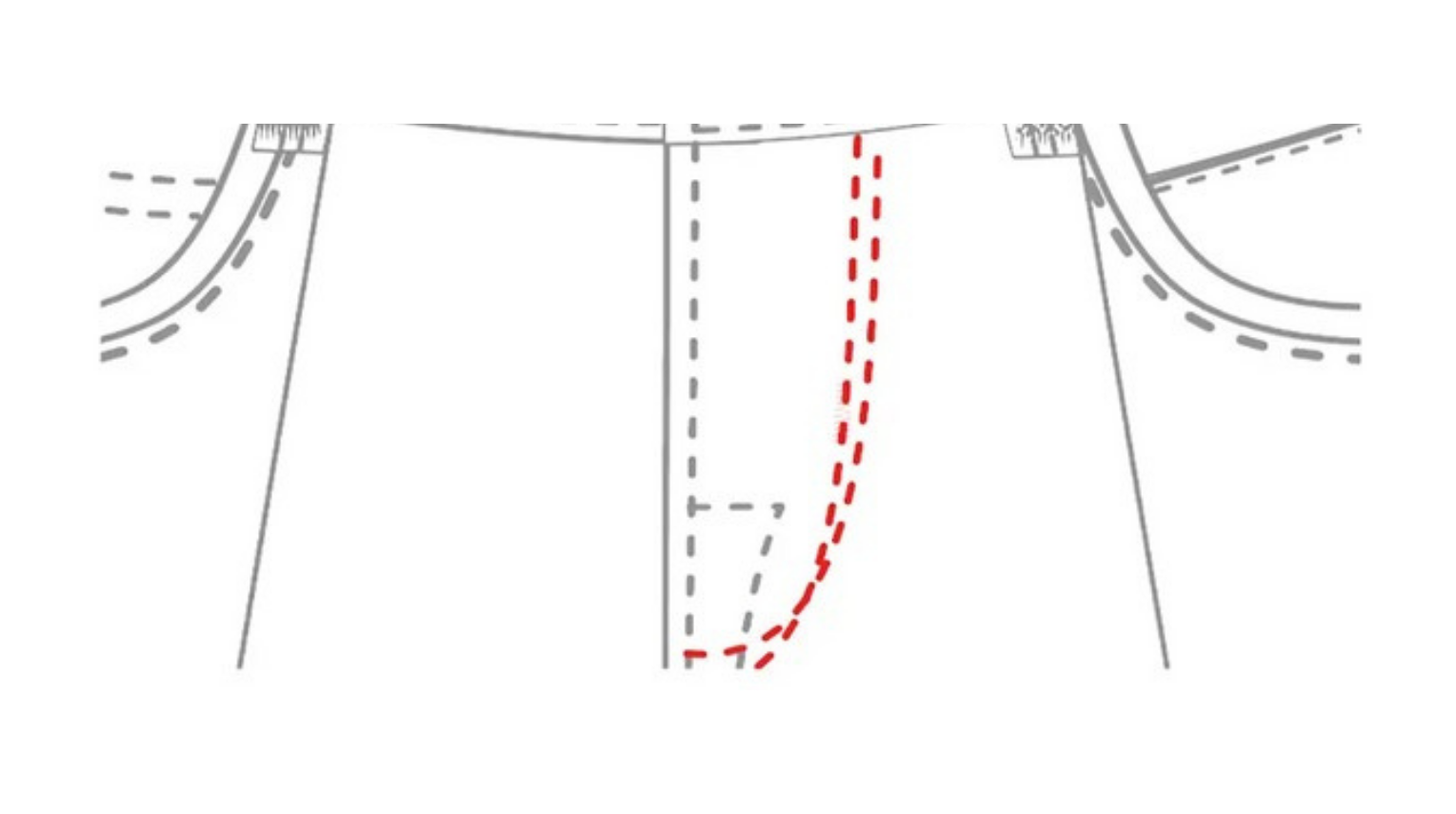

Perfect match between fly-piece and front left panel.

Model Name	AUTJS-6000J
Sewing Area	270 × 300 mm (X–Y)
Max. Sewing Speed	3600 rpm
Stitch Length	0.1 mm – 5 mm
Needle	DP5 (120)
Hook	Full Rotary 39.75 mm Ø
Number of Recordable Patterns	Unlimited patterns can be saved
Feeding Method	Servo Motor
Voltage	220 V
Frequency	50 Hz
Power	5 kW
Air Consumption	4–6 bar / 240 dm³
Weight	240 kg
Dimensions	1700 × 1400 × 1150 mm
Average Number of Products Released Per Day	3000 pieces
Lubrication System	Automatic
Thread Cutting Mechanism	Automatic
Noise	Max. 50 dB
Mold System	Easily changeable with 2–3 minutes change time
Control System	PC Control System
