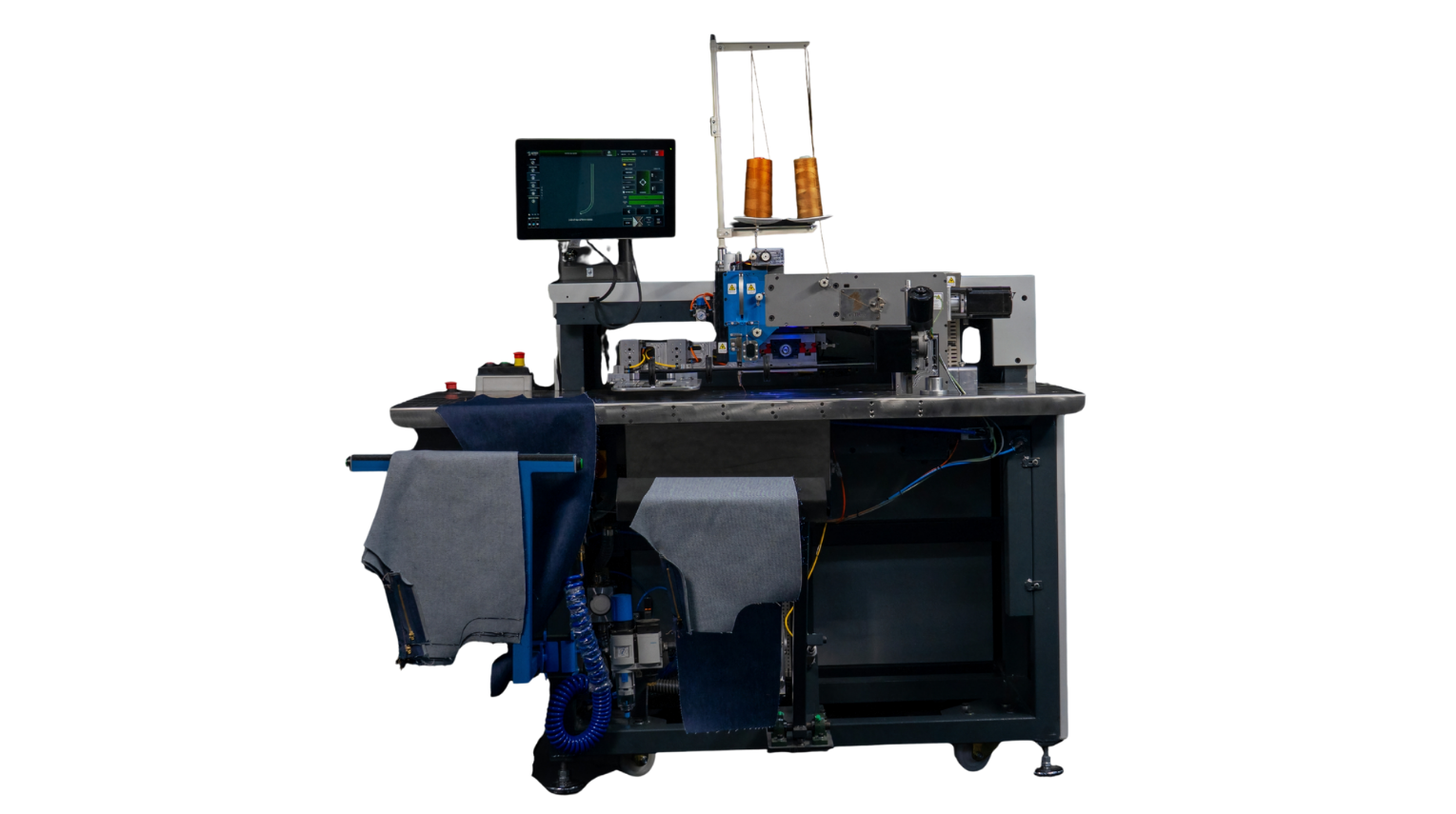

AGM AUTROY AUTPS-1000 MH

Single Head Automatic Pocket Setter

Adsız tasarım (26)
Adsız tasarım (27)
Adsız tasarım (28)

    TECHNICAL SPECIFICATIONS

    • High production capacity thanks to servo controlled motors capable of
      reaching 4000 rpm.
    • Automatic oiling system for needle bar,hook and needle foot.
    • Linear transport system.
    • Screwed shaft movement transfer.
    • Needle cooling system.
    • Cleaning system against fabric dust in hook section.
    • The ability to operate the desired head with one button with the same program in double head machine.
    • The ability to keep unlimited programs in memory thanks to the PC system used in the Eloktronic section.
    • Low mold cost.
    • Maximum efficiency due to automatic pocket creasing, pocket attaching and stacking.
    • Excellent pocket folding units and corner turn quality at the seams.
    • Ability to perform different sewing motifs sequentially in right and left pockets on the same pattern.
    • Able to work any kind of fabrics. Jeans, shirts, knits, towel, gabardine or other kind of fabric pockets can be sewn. It is also possible to process striped and checked fabrics as per pattern directly at the sewing unit without any problems.
    • Single and double color seams, additional and decorative seams for individual design.
    • Seam programs can be transferred via USB.
    • The ability to connect to the machine remotely via Wi-Fi.
    • The ability to attach cargo type pockets through the design of the machine.
    • Thanks to the design of the machine, the ability to attach pockets to the panels with the riser attached.
    • Thanks to the design of the machine, the ability to attach the pockets of
      bathrobe and derivative garment products.
    • Strong technical service team, spare parts stock guarantee and reasonable price guarantee for spare parts.
    • Neat Finishing; Edge folding capability from 8 mm to 35 mm. No excessive fabric inside of the pockets. Minimize problems from cutting mistakes.

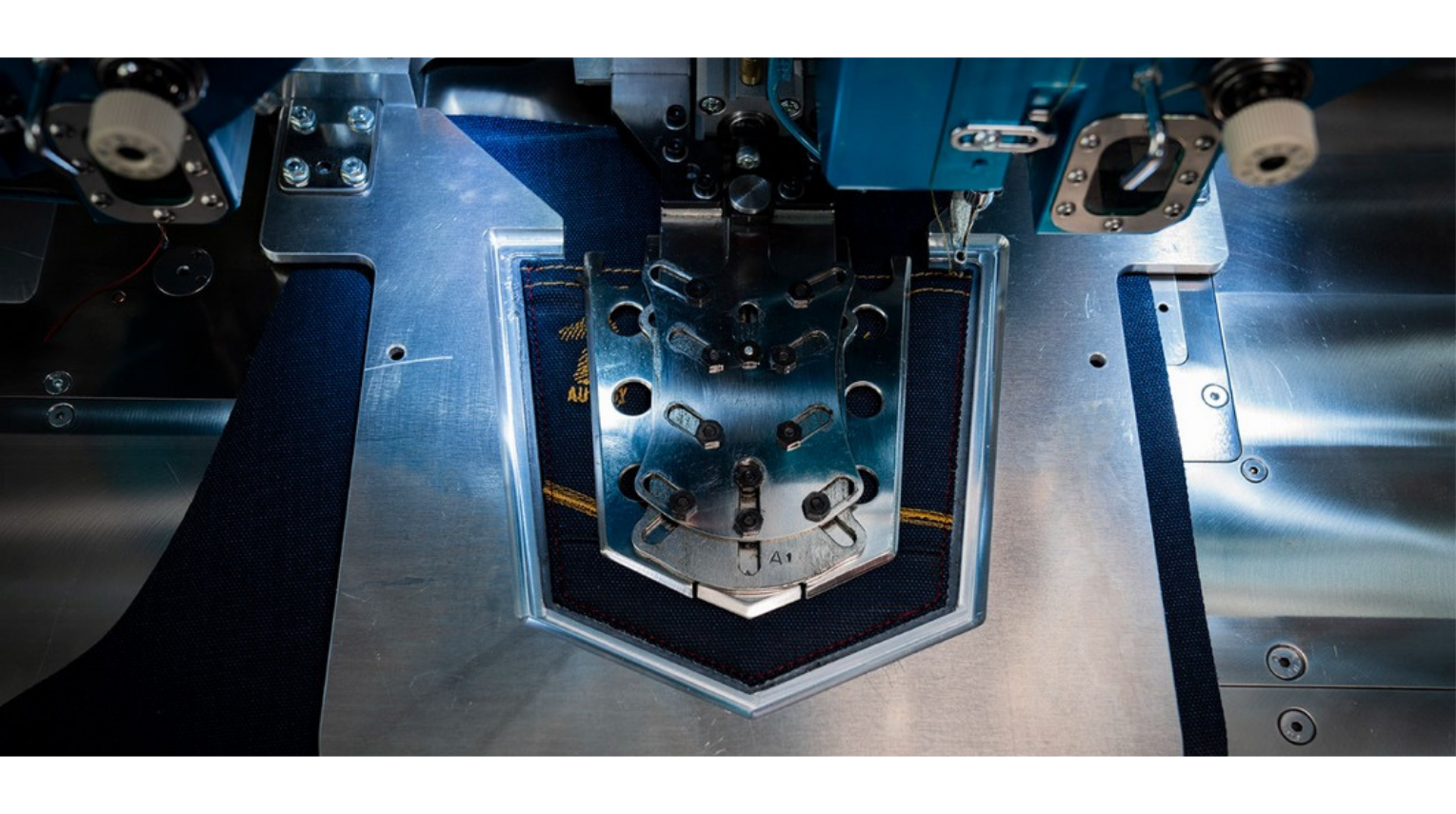

    • The pocket molds can be easily exchanged within the matter of 2-3 minutes.
    • Pocket setter for workwear and other large pieces up to 270*270 mm sewing area.
    • Pocket setter sewing area start from 40*40 mm for kids wear, coin pocket on pocket facing or pocket facing on pocket bag.
    • Perfect seam quality.
    • There is no visual differences of the inner and outer seams due to direction of sewing.
    • Easy operation and short training time.
    • Touch Screen PC with software (windows embedded) for the creation and modification of seam programs.
    • Screen control system allows easy adjustment of Stitch step length.
    • The touch screen control system allows the immediate and ease of correcting modification of the sewing program, including the bar tack.

    TECHNICAL SPECIFICATIONS

    Model Name SINGLE HEAD (AUTPS-1000HK)
    Sewing Area 270 × 300 mm (X–Y)
    Max. Sewing Speed 4000 rpm
    Stitch Length 0.1 mm – 5 mm
    Needle DP5 (120)
    Hook Full Rotary 39.75 mm Ø
    Number of Recordable Patterns Unlimited patterns can be saved
    Feeding Method Servo Motor
    Voltage 220 V
    Frequency 50 Hz
    Power 5 kW
    Air Consumption 4–6 bar / 240 dm³
    Weight 640 kg
    Dimensions 1550 × 1880 × 1600 mm
    Average Number of Pockets Per Day 3000 pieces
    Lubrication System Automatic
    Thread Cutting Mechanism Automatic
    Noise Max. 50 dB
    Fold Allowance 8 – 35 mm
    Mold System Easily changeable with 2–3 minutes change time
    Control System PC Control System
