KM 930 ST/LS-T3
Jeans Waistband Sewing Automation Unit
The world’s first and only Hybrid Waistband Automation. By changing sets and accessories, the same machine enables attachment of standard straight and curved waistbands as well as Levi’s-style waistbands—all in one system.
EASY TRANSITION FROM STANDARD SET TO LEVI’S-STYLE SET
Straight, curved, or Levi’s-style waistband attachment can be selected with a single touch via the control screen.

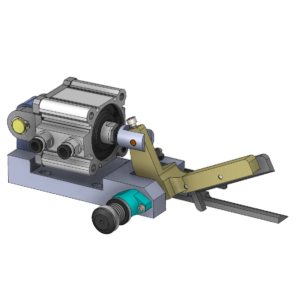

ADJUSTABLE WAISTBAND CUTTING UNIT
Allows easy adjustment of waistband cutting distances at both entry and exit points directly from the screen.
ADJUSTABLE STITCH REMOVAL OPTIONS
Stitch removal can be adjusted independently for the right and left needles.

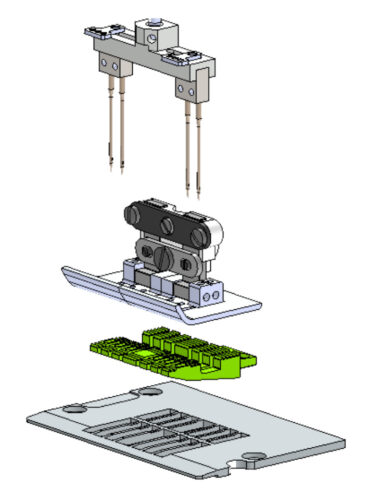

CUSTOM-DESIGNED 6-NEEDLE MACHINE HEAD WITH NEEDLE TRANSPORT
A needle-transport machine head specially designed for AGM Special, operating with an adjustable 1/8″ needle gauge.
FEATURES
Ability to attach both Levi’s-style and standard waistbands on a single machine
6-needle chain stitch machine head with needle transport, specially designed for AGM Special
Software fully developed by AGM Special
Independently adjustable stitch removal for left and right needles
Additional rear puller roller located behind the cutting blade
Automatic cutting system at both entry and exit points
Specially designed guarded presser foot
Special roller system for curved and straight waistbands
Automatic dual tension system preventing chain stitch looping
User-friendly touchscreen interface with Turkish and English language options

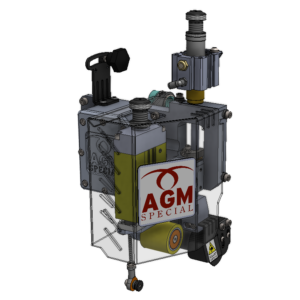

Crankcase cleaning system allowing easy oil replacement
OPTIONS
| Standard Set: 1/4″ - 1″ - 1/4″ |
| Optional Sets: |
| Needle Gauge: Minimum 1/8″, Maximum 1/4″ |
| Number of Needles: Minimum 1, Maximum 6 |
| Set Width: Minimum 1″, Maximum 1 3/4″ |
TECHNICAL SPECIFICATIONS
| Machine Head: | 6-needle chain stitch with needle transport |
| Motor: | Direct-drive electronic servo motor |
| Foot & Table: | Adjustable L-type |
| Stitch Removal: | Independently adjustable stitch removal for right and left needles |
| Cutting Unit: | Separately adjustable cutting at entry and exit points |
| Presser Foot Lift: | Automatic |
| Puller Unit: | Additional reinforced rear roller puller system (behind the cutting blade) |
| Needle Cooling: | Additional reinforced needle cooling system |
| Presser Foot: | Guarded presser foot specially designed by AGM Special |
| Roller Unit: | Special roller system for curved and straight waistbands |
| Feed Adjustment: | Mechanical adjustment of roller pulling force (low/high) |
| Oil Drainage: | Crankcase cleaning system for easy oil replacement |
| Air Pressure Roller: | Additional air pressure roller system (to increase roller pulling force) |
| Tension System: | Automatic dual tension system preventing chain stitch looping |
| Touchscreen: | User-friendly touchscreen with Turkish and English language options |
| Cutting Distance: | 55 mm |
| Maximum Speed: | 3,200 rpm |
| Daily Capacity: | 1,700–2,500 pieces / 8 hours |
| Net Weight: | 98 kg |
| Gross Weight: | 111 kg |
| Dimensions: | 60 × 100 × 130 cm |
| Air Pressure: | 6 bar |
| Voltage: | 220–240 V, 60 Hz |
| Power: | 2,400–2,800 W |
