KZ 1060 JL-T3
Jeans 3-Needle Arm Sewing Automation
Developed through years of engineering work by the AGM Special R&D team, this system features a fully lubricated transmission compatible with full-oil arm sewing machines, along with a special 3-wheel articulated crawler puller system. Thanks to this advanced combination, stitching defects at seam joints and during long operations have been reduced to a minimum.

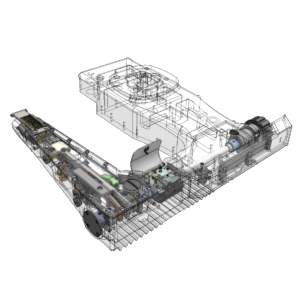

FULLY LUBRICATED TRANSMISSION
A direct-drive, fully lubricated transmission system designed by the AGM Special R&D department.
THREE-WHEEL CRAWLER PULLER SYSTEM
A 3-wheel articulated crawler puller system that prevents fabric waving, stitch counting issues, skipped stitches, and uneven seams during sewing.
PERFECT FULL LUBRICATION SYSTEM
Delivers high performance without any oil leakage, ensuring clean and stable operation.
Featured Features
Fully lubricated direct-drive transmission system
Articulated crawler puller system that prevents fabric waving, stitch counting issues, skipped stitches, and seam distortion during sewing
Direct-drive electronic servo motor
Adjustable L-type table and stand
Automatic presser foot lifting system
Additional reinforced needle cooling system

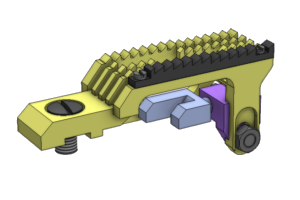

Guarded presser foot specially designed by AGM Special
Automatic dual tension system preventing chain stitch looping
Fully lubricated 3-needle chain stitch machine head
OPTIONS
| Standard Set: 1/8″–1/8″ |
| Needle Gauge: Minimum 1/8″, Maximum 1/4″ |
| Number of Needles: Minimum 1, Maximum 3 |
| Set Width: Minimum 1/8″, Maximum 1/4″ |
| Optional Sets: |
|
1/8″–1/8″ Slim Set (6.35 mm, 3 needles) 3/16″ Set (4.76 mm, 2 needles) 9/32″ Set (7.14 mm, 3 needles) 5/32″ Set (4 mm, 2 needles) |
TECHNICAL SPECIFICATIONS
| Machine Head: | 3-needle chain stitch |
| Motor: | Direct-drive electronic servo motor |
| Table & Stand: | Adjustable L-type |
| Presser Foot Lifting: | Automatic |
| Transmission: | Fully lubricated direct-drive transmission system |
| Needle Cooling: | Additional reinforced needle cooling system |
| Presser Foot: | Guarded presser foot |
| Puller Unit: | 3-wheel articulated crawler puller system |
| Tension System: | Automatic dual tension system preventing chain stitch looping |
| Maximum Speed: | 5,000 rpm |
| Voltage: | 220–240 V, 60 Hz |
| Power: | 2,400–2,800 W |
| Air Pressure: | 6 bar |
| Air Consumption: | 3 L/min |
| Net Weight: | 98 kg |
| Gross Weight: | 111 kg |
| Dimensions: | 60 × 100 × 130 cm |
