KZ 1060 JL-T3-ZD 1001
Jeans 3-Needle Sleeve Sewing Machine
Developed through many years of work by the AGM Special R&D team, the fully lubricated transmission system, compatible with full-oil arm machines, together with the special 3-wheel articulated crawler puller system, has reduced stitching defects at seam joints and during long operations to a minimum.

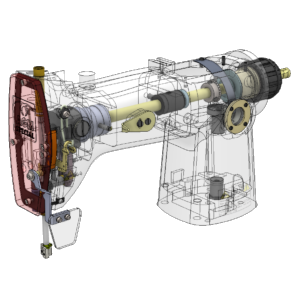

FULLY LUBRICATED TRANSMISSION
A fully lubricated, direct-drive transmission system designed by the AGM Special R&D department.

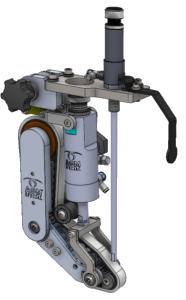

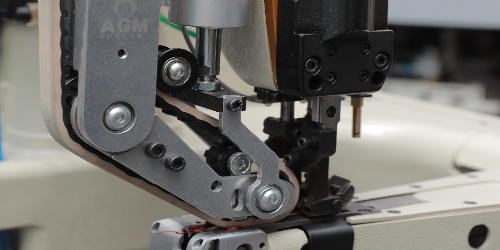

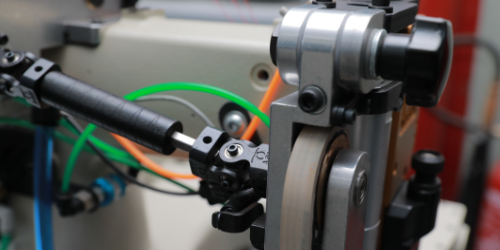

THREE-WHEEL CRAWLER PULLER SYSTEM
A 3-wheel articulated crawler puller system that prevents fabric waving, stitch counting, skipped stitches, and uneven seams during sewing.

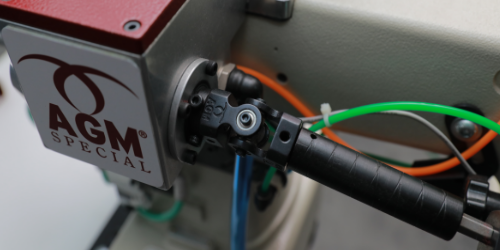

FLAWLESS THREAD CUTTING SYSTEM
The ZD 1001 automatic thread cutting system, designed by AGM Special.

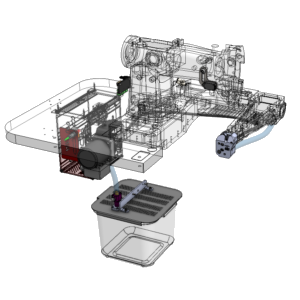

PERFECT FULL LUBRICATION SYSTEM
Delivers high performance without any oil leakage.
FEATURES
Fully lubricated direct-drive transmission system
Articulated crawler puller system that prevents fabric waving, stitch counting, skipped stitches, and seam distortion during sewing
ZD 1001 special-design, long-life thread cutting system developed by AGM Special
Direct-drive electronic servo motor
Adjustable L-type table and stand
Automatic presser foot lifting system
Additional reinforced needle cooling system
Guarded presser foot specially designed by AGM Special
Automatic dual tension system preventing chain stitch looping
Fully lubricated 3-needle chain stitch machine head

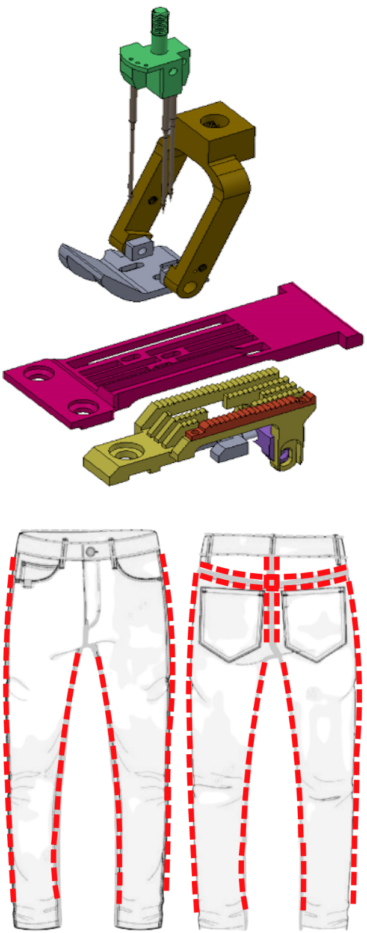

OPTIONS
| Standard Set : 1/8″-1/8″ |
| Needle Spacing: Minimum 1/8″ , Maximum 1/4″ |
| Number of Needles: Minimum 1 , Maximum 3 |
| Set Width: Minimum 1/8″ , Maximum 1/4″ |
| Optional Sets : |
|
1/8″-1/8″ Slim Set (6.35 mm, 3 needles)
3/16″ Set (4.76 mm, 2 needles) 9/32″ Set (7.14 mm, 3 needles) 5/32″ Set (4 mm, 2 needles) |
TECHNICAL SPECIFICATIONS
| Machine Head: | 3-needle chain stitch |
| Motor: | Direct drive servo electronic motor |
| Foot & Table: | Adjustable L-type |
| Presser Foot Lifting: | Automatic |
| Thread Cutting System: | ZD 1001 model, specially designed long-life thread cutting system |
| Gearbox: | Fully lubricated direct-drive transmission system |
| Needle Cooling: | Additional reinforced needle cooling feature |
| Presser Foot: | Shielded presser foot |
| Feeding Unit: | 3-wheel oscillating head track feeding system |
| Tension System: | Automatic dual tension system preventing chain stitch sinking |
| Maximum Speed: | 5000 rpm |
| Voltage: | 220–240V 60Hz |
| Power: | 2400–2800 W |
| Air Pressure: | 6 bar |
| Air Consumption: | 3 L/min |
| Net Weight: | 98 kg |
| Gross Weight: | 111 kg |
| Dimensions: | 60 × 100 × 130 cm |
