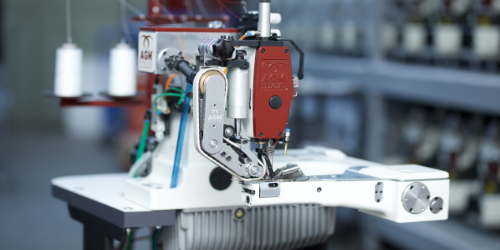

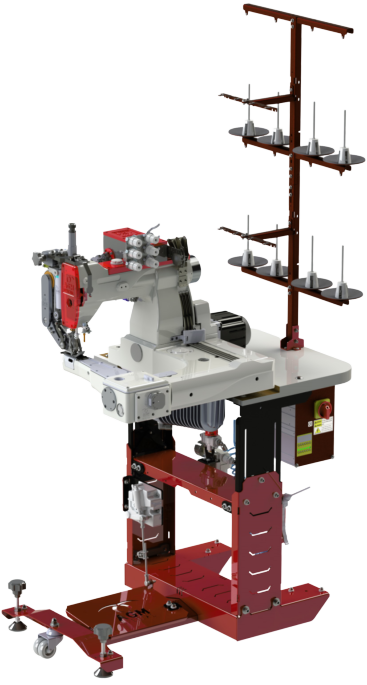

KZ 1080 DFX-T1
Jeans 3-Needle Sleeve Sewing Machine
The unique feeding system allows the machine to operate smoothly on all types of fabric thicknesses, making it an ideal choice for manufacturers who continuously work with different fabric varieties.

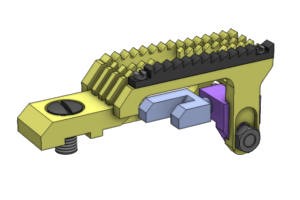

DIFFERENTIAL FEEDING
Independently adjustable differential feed system that prevents fabric twisting (fabric skewing).

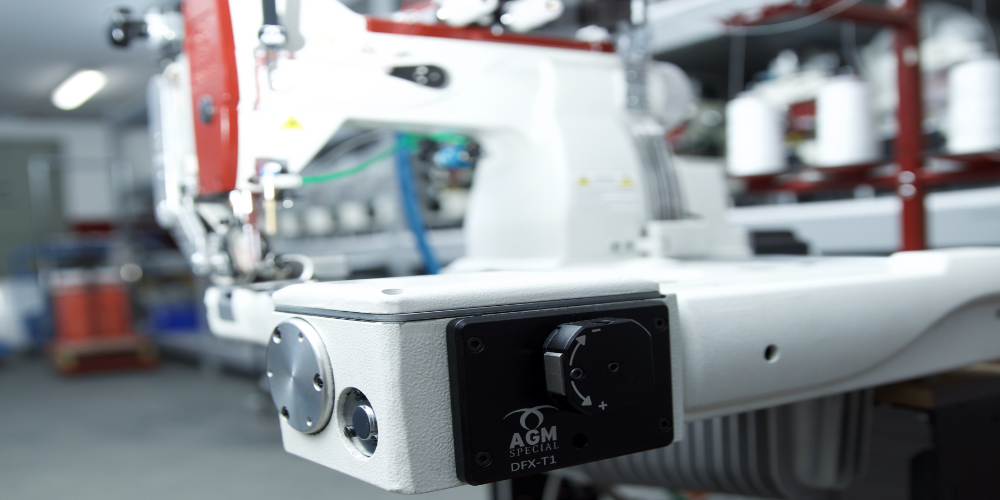

FULLY LUBRICATED GEARBOX
Fully lubricated, direct-drive transmission system designed by the AGM Special R&D department.

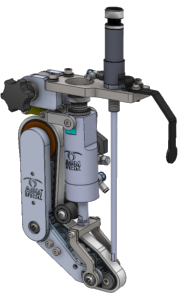

3-WHEEL TRACK FEEDING SYSTEM
Three-wheel oscillating track feeding system that prevents fabric waviness, stitch counting issues, skipped stitches, and uneven stitching during sewing.
Featured Features
Independently adjustable differential gear system that provides ease of use for the operator and enables perfect stitching on different fabric types
Fully lubricated, direct-drive transmission system
Oscillating track feeding system that prevents fabric waviness, stitch counting issues, skipped stitches, and uneven stitching during sewing
Direct drive servo electronic motor
Adjustable L-type table and foot
Automatic presser foot lifting system
Additional reinforced needle cooling feature
Special shielded presser foot designed by AGM Special
Automatic dual tension system that prevents chain stitch sinking
Fully lubricated 3-needle chain stitch machine head
OPTIONS
| Standard Set: 1/8″–1/8″ |
| Needle Spacing: Minimum 1/8″, Maximum 1/4″ |
| Number of Needles: Minimum 1, Maximum 3 |
| Set Width: Minimum 1/8″, Maximum 1/4″ |
| Optional Sets: |
|
1/8″–1/8″ Slim Set (6.35 mm, 3 needles) 3/16″ Set (4.76 mm, 2 needles) 9/32″ Set (7.14 mm, 3 needles) 5/32″ Set (4 mm, 2 needles) |
TECHNICAL SPECIFICATIONS
| Feeding: | Differential feed |
| Machine Head: | 3-needle chain stitch |
| Motor: | Direct drive servo electronic motor |
| Foot and Table: | Adjustable L-type |
| Presser Foot Lifting: | Automatic |
| Transmission: | Fully lubricated direct-drive transmission system |
| Needle Cooling: | Additional reinforced needle cooling feature |
| Presser Foot: | Chameleon feed dog, plate, and presser foot system suitable for all fabrics |
| Puller Unit: | 3-wheel oscillating head belt puller system |
| Tension System: | Automatic dual tension system preventing chain stitch sink-in |
| Maximum Speed: | 5000 rpm |
| Voltage: | 220–240V 60Hz |
| Power: | 2400–2800 W |
| Air Pressure: | 6 bar |
| Air Consumption: | 3 L / min |
| Net Weight: | 98 kg |
| Gross Weight: | 111 kg |
| Dimensions: | 60 × 100 × 130 cm |
